    [资料] IBM年代以及编号查询

    13 22193
    楼主
    跳转到指定楼层
    发表于 2010-4-26 11:40 只看该作者 只看大图 倒序浏览 阅读模式
    IBM年代以及编号查询

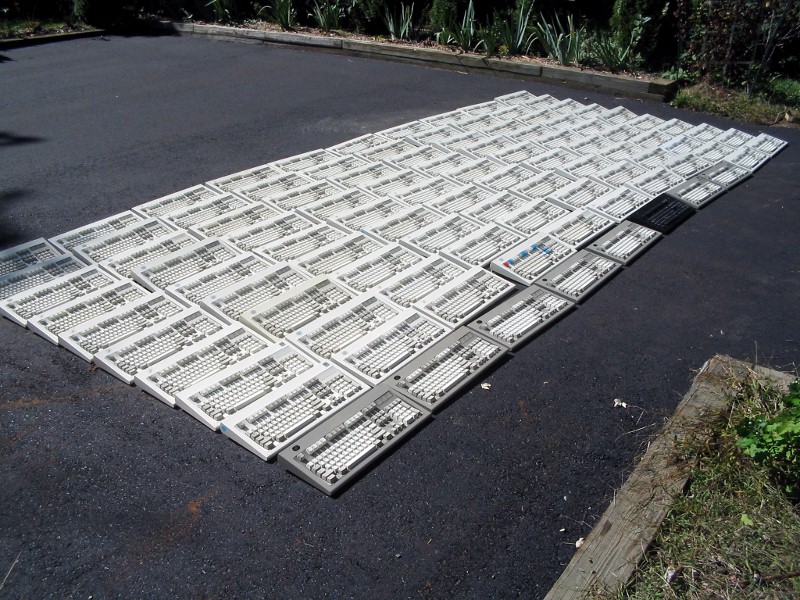

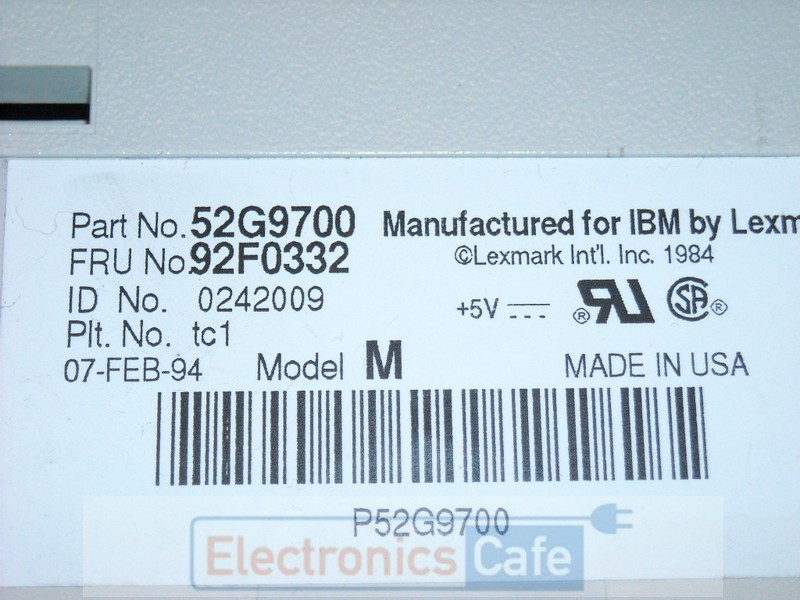

    以下面的图为例

    IBM年代以及编号查询
    你要知道就是Part No
    然后用这个表格查询出产年代，logo位置
    如果有DATE的话就是出产时间
    或者有类似XX-XX-XX的，都可能是出厂时间
    比如上图的出厂时间是
    07日-2月-1994年

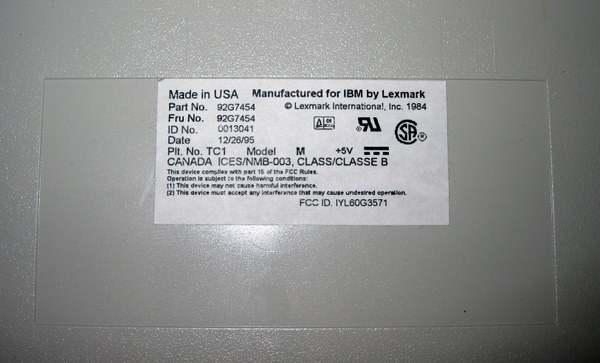

    IBM年代以及编号查询

    这个标签上面的DATE标的则是12月27号1995年，因为美式日期格式是月 日 年

    评分

    参与人数 1技术分 +2 +15 收起 理由
    rosicky311 + 2 + 15

    查看全部评分

    0人
    已赞
    微信分享 赞 收藏
    回复

    使用道具 举报

    混沌邨
    我的人缘0
    推荐
    发表于 2010-4-26 12:55 只看该作者
    这个我以前也转过。。新人啊！亲人啊您就动手搜搜吧！
    回复 支持 1 反对 0

    使用道具 举报

    superhh7
    我的人缘0
    推荐
    发表于 2010-4-26 11:46 只看该作者
    那图不会全是你的吧~~~哈哈
    回复 支持 1 反对 0

    使用道具 举报

    强大的t-back
    我的人缘0
    推荐
    发表于 2010-4-26 11:42 只看该作者
    52G9700Buckling springYesNoPS/2YesBlue, left cornerLexmark1993–1999Lexmark International, Inc. 1984
    70G8638Rubber DomeNoNoPS/2YesSquare, top rightLexmark ?-1994-?Lexmark International. Inc. 1984Speaker grill on bottom of unit, silkscreen keycaps
    71G4621Dome switchesYesNoPS/2YesBlue, left cornerLexmark (for IBM) ?-1996-?Lexmark International, Inc. 1984Danish QWERTY layout
    71G4622Dome switchesNoNoPS/2YesBlue, left cornerLexmark (for IBM) ?-1995-?Lexmark International, Inc. 1984Dutch QWERTY layout, 1378705, EC1391461
    71G4625Dome switchesNoNoPS/2YesGrey, left cornerLexmark (for IBM) ?-1993-1996-?Lexmark International, Inc. 1984German QWERTZ layout
    71G4630Dome switchesNoNoPS/2YesBlue, left cornerLexmark (for IBM) ?-1994-?Lexmark International, Inc. 1984Italian QWERTY layout
    71G4643Dome switchesYesNoPS/2YesBlue, left cornerLexmark ?-1995-?Lexmark International, Inc. 1985
    71G4644Dome switchesNoNoPS/2YesBlue, left cornerLexmark ?-1993-1995-?Lexmark International, Inc. 1984
    8131276Buckling springNoNoRJ25YesBlue, Upper-right cornerIBM UK ???-1996IBM Corp.
    82G2383Buckling springYesNoPS/2YesBlue, left cornerLexmark1993–1999Lexmark International, Inc. 1984
    82G3281Buckling springNoNoPS/2Yes ?Lexmark1994–1995Lexmark International, Inc. 1984White trackpoint, two connectors for keyboard and mouse
    82G3295Buckling springYesNoPS/2YesBlue "IBM", top left cornerLexmark ?–1995-?Lexmark International, Inc. 1984
    06H4173Buckling springNoNoPS/2Yes ?Unicomp1998–1999Unicomp, Inc. 1984Industrial PS/2 trackpoint, two connectors for keyboard and mouse
    UB40R46Buckling springNoNoPS/2Yes ?Unicomp ?–PresentUnicomp, Inc. 1984104 key, customizable layout.
    UB4044ABuckling springNoNoUSBYesNoneUnicomp ?–PresentUnicomp, Inc. 1984104 key, customizable layout (USB version).
    02K3817Buckling springYesNoPS/2YesNoneUnicomp ?-PresentUnicomp, Inc. 1984German layout unicomp keyboard
    UNI0T56Buckling springNoNoPS/2YesNoneUnicomp ?–2003–? ?122 key, laid out for use with PC/5250 emulators; produces standard 101-key scancodes with keys that are not present on a standard keyboard mapped to standard keys with modifiers (eg, F24 appears to the PC as shift+F12)
    Part NumberKey TypeDetachableInterfaceDrainage ChannelsLabel Type/PositionManufacturerDates of ManufactureCopyrightMisc features
    回复 支持 0 反对 1

    使用道具 举报

    强大的t-back
    我的人缘0
    推荐
    发表于 2010-4-26 11:42 只看该作者
    本帖最后由 强大的t-back 于 2010-4-26 11:44 编辑

    1394540Buckling springYesYesPS/2NoGray, left cornerIBM1990-1991?IBM Corp. 1984Made for IBM RS/6000 computer. Contains real speaker.
    1394542Buckling springYesYesPS/2YesGray/blue, left cornerIBM UK1991-1994?IBM Corp. 1985German QWERTZ layout
    1394545Buckling springYesYesPS/2NoGray, left cornerIBM UK1990-1992?IBM Corp. 1985Made for IBM RS/6000 computer. Contains real speaker. Swedish/Finnish 102-key QWERTY layout.
    1394958Buckling springYesYesPS/2YesSilver on black, left cornerIBM UK??-1998-??IBM Corp. 1985German QWERTZ, dark gray industrial version
    1394966Buckling springYesYesPS/2?Silver on black, left cornerIBM UK1992-02-13IBM Corp. 1985Swedish 102-key, dark gray industrial version
    1395300Buckling springNoNoPS/2NoBlue, top right rightIBM1990-1993IBM Corp. 1984Model M2; Shipped with IBM PS/1
    1396790Buckling springYesYesPS/2YesBlue, top leftIBM?-1992-1995?IBM Corp. 1985Made in UK by IBM; North American layout
    1397003Buckling springYesYesPS/2?Blue, top leftIBM?-1993-1999?IBM Corp. 1985Made in UK by IBM; German QWERTZ; 122 Keys
    1397599Buckling springYesYesPS/2YesGray, left cornerIBM?–1993–?IBM Corp. 1984
    1397681Buckling springNoYesPS/2 (or AT?)YesBlue, left cornerIBM?-1992-1993-?IBM Corp. 1984Space saver; no numeric keypad or lights
    1399625Buckling springYesNoPS/2YesBlue, left cornerLexmark, IBM UK?-1994-?Lexmark International Inc. 1985Terminal keyboard; speaker grill on bottom of unit; no lights
    13H6705Buckling springNoNoPS/2YesSilver, left cornerLexmark1995–1998Lexmark International, Inc. 1984Trackpoint, two connectors for keyboard and mouse, the only Model M to come in Black
    42H1292, 92G7453, 92G7483Buckling springYesNoPS/2YesBlue, left cornerLexmark, IBM UK1993–1999Lexmark International, Inc. 1984
    42H1292UBuckling springYesNoPS/2YesBlue, left cornerUnicomp1996–presentUnicomp, Inc. 1984Optional AT/DIR adapter
    51G8572Buckling springYesYesPS/2YesGray/Blue, left cornerIBM, Lexmark, IBM UK1993-1996IBM Corp. 1984/Lexmark International, Inc. 1984Model M; shipped with IBM RS/6000; speaker on bottom of unit
    52G9658Buckling springYesNoPS/2YesBlue, left cornerLexmark?-1993-?Lexmark International, Inc. 1984Model M; speaker grill on bottom of unit
    回复 支持 1 反对 0

    使用道具 举报

    强大的t-back
    我的人缘0
    推荐
    发表于 2010-4-26 11:41 只看该作者
    本帖最后由 强大的t-back 于 2010-4-26 11:43 编辑

    Part NumberKey TypeDetachableInterfaceDrainage ChannelsLabel Type/PositionManufacturerDates of ManufactureCopyrightMisc features
    Key CapsCable
    1370477Buckling springNoYesPS/2YesBlue, left cornerLexmark?-1995-?Lexmark International, Inc. 1984
    1370478Buckling springYesYesPS/2YesBlue, left cornerLexmark1993Lexmark Int'l. Inc. 1984M-5, trackball. Left and right click, and L/R "drag" buttons.
    1386085Buckling springYesYesATNoGrey, left cornerIBM1988IBM Corp. 1984English layout.
    1389979Buckling springYesYesATNoSilver, right cornerIBM1986–1987IBM Corp. 1984No LED lights for Num/Caps/Scroll lock. Swedish layout.
    1390120Buckling springYesYesATNoSilver, right cornerIBM1986–1987IBM Corp. 1984No LED lights for Num/Caps/Scroll lock
    1390131Buckling springYesYesAT or PS/2NoSilver, right cornerIBM1986–1987, 1993IBM Corp. 1984
    1390133Buckling springYesYesAT or PS/2NoSilver, right cornerIBM?-1986-1987IBM Corp. 1984German QWERTZ layout
    1390148Buckling springYesYesAT or PS/2NoSilver, right cornerIBM?-1986-1987IBM Corp. 1984German QWERTZ layout
    1390639Buckling springYesNoXTYesSilver, right cornerIBM? - 1987 - ?IBM Corp. 1985Spanish QWERTY layout
    1391401Buckling springYesYesAT or PS/2No (yes 1992 and after)Grey (Blue 1992 and after), left cornerIBM1984–1996IBM Corp. 1984
    1391402Buckling springYesYesPS/2Yes ?Grey (Blue 1992? and after), left cornerIBM UK1991–1996-?IBM Corp. 1985French AZERTY layout
    1391403Buckling springYesYes (no 1995 and later)AT or PS/2YesGrey, left corner and also Blue, left cornerIBM UK/Lexmark International1986–1997IBM Corp./Lexmark International Inc. 1985German QWERTZ layout
    1391404Buckling springYesYesAT or PS/2NoGrey, left cornerIBM UK1986–?IBM Corporation (no year on label)Italian QWERTY layout
    1391405Buckling springYesYesAT or PS/2NoBlack/Blue, left cornerIBM1986–?IBM Corp. 1985Spanish QWERTY layout
    1391406Buckling springYesYesAT or PS/2NoGrey, left cornerIBM≤1985–1999IBM United KingdomUK 102-key variant
    1391407Buckling springYesYesPS/2YesGrey, left cornerIBM?–1994-1996-?IBM United KingdomDanish/Icelandic 102-key
    1391409Buckling springYesYesPS/2NoGray, left cornerIBM1989-1992?IBM Corp. 1985Norwegian 102-key
    1391410Buckling springYesYesPS/2 (or AT?)No?IBM UK?–1992–?IBM Corp. 1985Portuguese 102-key
    1391411Buckling springYesYesAT or PS/2NoGray/blue, left cornerIBM UK?-1987–1997–?IBM Corp. 1985Swedish 102-key
    1391414Buckling springYesYesPS/2 (or AT?)No?IBM UK?–1996–?IBM Corp. 1985Belgian AZERTY layout
    1391412Buckling springYesYesPS/2NoGray, left cornerIBM UK1987-1996IBM Corp.Swiss French/German QWERTZ layout, 102-key
    1391472Buckling springYesYesAT or PS/2NoGray, left cornerIBM1987-1991IBM Corp. 1984Space saver; no numeric keypad or lights
    1391506Buckling springYesYesPS/2NoGray/blue, left corner and also grey left cornerIBM de Mexico1990IBM Corp. 1984Spanish QWERTY layout
    1391511Buckling springYesYesPS/2NoBlue, left cornerIBM UK1990-1993IBM Corp. 1985Dutch 102-key
    1392565Buckling springYesNo8P5C (RJ-45)YesGrey, left cornerLexmark (for IBM)??? -- 1995Lexmark International, Inc. 1984Keyboard for terminals such as IBM 3151. Line drawing characters on the numeric keypad. "Page Up"/"Page Down" replaced with "Clear"/"Erase EOF". Bottom row consists of "Ctrl", "Reset", spacebar, "Ctrl", "Send". Speaker grill on bottom of unit.
    1392934Buckling springYesYesAT or PS/2NoGray, left cornerIBM1990IBM Corp. 1984Space saver; no numeric keypad or lights
    1393464Buckling springYesYesPS/2No{?}Grey, left cornerIBM?-1987-1992-?IBM Corp. 1984Same as 1391401, with special key-caps: Used for airline reservations
    1393669Buckling springYesYesPS/2NoBlue, left cornerLexmark UK / IBM UK1994-1995Lexmark International Inc. 1985 / IBM Corp. 1985Croatian QWERTZ layout; speaker grill on bottom of unit
    1394064Buckling springYesYesPS/2No?Lexmark?–1996–?Lexmark International, Inc. 1984
    回复 支持 1 反对 0

    使用道具 举报

    rosicky311
    我的人缘0
    7楼
    发表于 2010-4-26 13:04 只看该作者
    真犀利啊
    回复 支持 反对

    使用道具 举报

    混沌邨
    我的人缘0
    8楼
    发表于 2010-4-26 13:24 只看该作者
    测试
    click网站。。。可以说是IBM Model-M权威了
    回复 支持 反对

    使用道具 举报

    eagle
    我的人缘0
    9楼
    发表于 2010-4-26 13:34 只看该作者
    四姐的，必须顶。
    回复 支持 反对

    使用道具 举报

    YOYO777
    我的人缘0
    10楼
    发表于 2010-4-26 13:37 只看该作者
    测试
    我是来看第一张的。。
